Flange Type Multi-Axis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Sensor

Name: Flange Type MultiAxis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Sensor
Brand: Forsentek
Price: 1 USD

China Flange Type Multi-Axis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Sensor wholesale

Brand Name : Forsentek

Model Number : F3A/F3B

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1980pcs/month

Delivery Time : 4-5 weeks

Packaging Details : 1pc/box

Force Channel : Fx/Fy/Fz

Type : 3 Axis Load Cell

Force range : 500N 1KN 2KN 3KN 5KN 10KN

Connection : Flange to Flange

Output : Analog Sensor

Contact Now

Flange Type Multi-Axis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Sensor

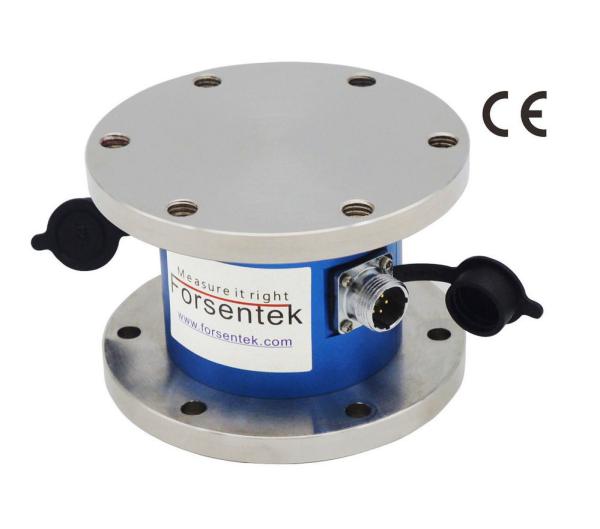

3-Axis Load Cell F3A/F3B is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction. Flange to flange structure,easy to install, Multi-axis force sensor F3A/F3B offers 500N / 1KN / 2KN / 3KN / 5KN / 10KN for each axis to choose from. Typical applications for this type of transducer are for example force exertion control in robotics,automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement and so on. Other capacities with similar structure is customizable.

Flange Type Multi-Axis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Sensor

Specifications

Rated Capacity	50kg / 500N / 110lb 100kg / 1000N / 220lb 200kg / 2000N / 440lb 300kg / 3000N / 660lb 500kg / 5000N / 1100lb 1000kg / 10000N / 2200lb
Sensitivity	1.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Non-linearity	±0.5% R.O.
Hysteresis	±0.3% R.O.
Non-repeatability	±0.2% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40^oC
Operating temperature	-20...+60^oC
Temperature shift on zero	±0.02% R.O./^oC
Temperature shift on span	±0.02% R.O./^oC
Input resistance	Fx/Fy: 380±30 ohms Fz: 710±30 ohms
Output resistance	Fx/Fy: 355±5 ohms Fz: 710±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP50
Material of element	Stainless steel
Cable	F3A: Ø63000mm 8-pin shielded cable (x1) F3B: Ø53000mm 4-pin shielded cable (x3)
Wiring code	4-wire connection for each axis

Ordering code of multi axis load cell F3A

Ordering code	Capacity
Ordering code	Fx=Fy	Fz
F3A-50kg	50kg	50kg
F3A-50-50-100	50kg	100kg
F3A-100kg	100kg	100kg
F3A-100-100-200	100kg	200kg
F3A-200kg	200kg	200kg
F3A-200-200-300	200kg	300kg
F3A-300kg	300kg	300kg
F3A-300-300-500	300kg	500kg
F3A-500kg	500kg	500kg
F3A-500-500-1k	500kg	1000kg

Flange Mounted Multi-Axis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Transducer

Flange Type Multi-Axis Load Cell 500N 1kN 2kN 3kN 5kN 10kN 3D Force Sensor
Click here to download datasheet
